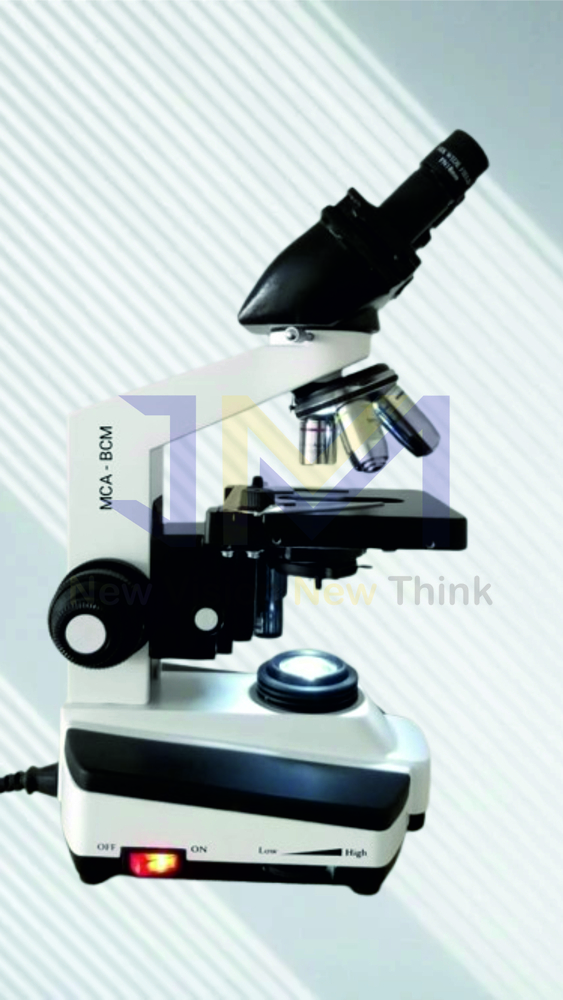

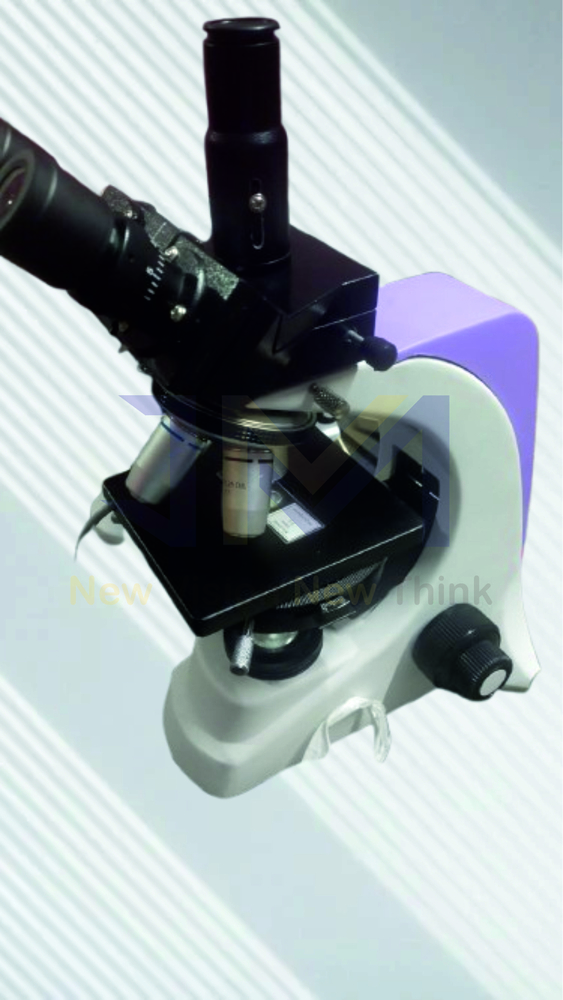

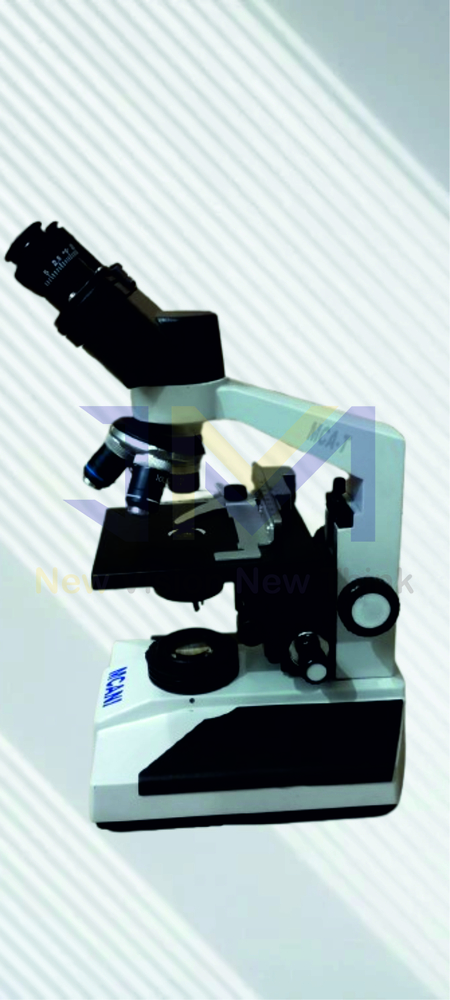

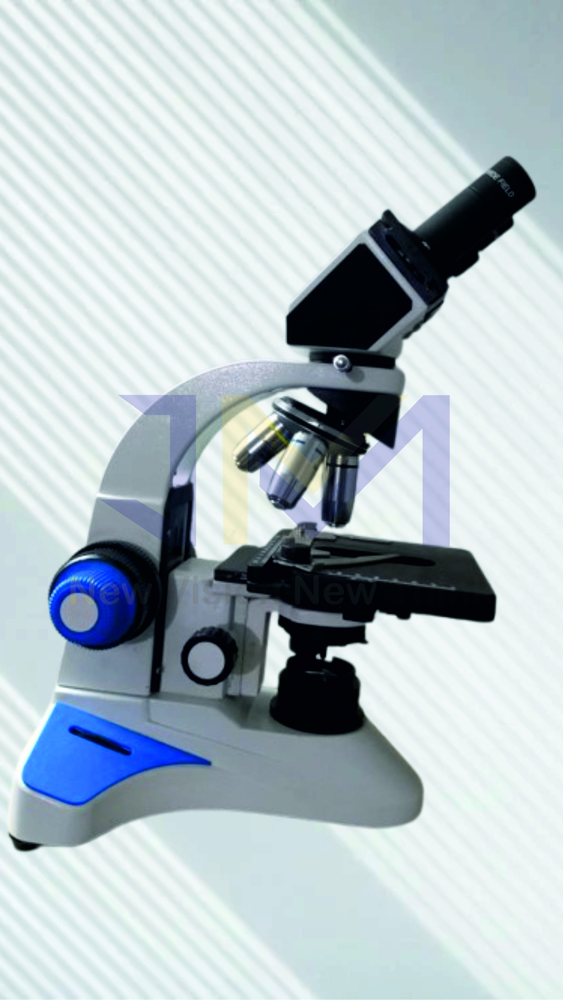

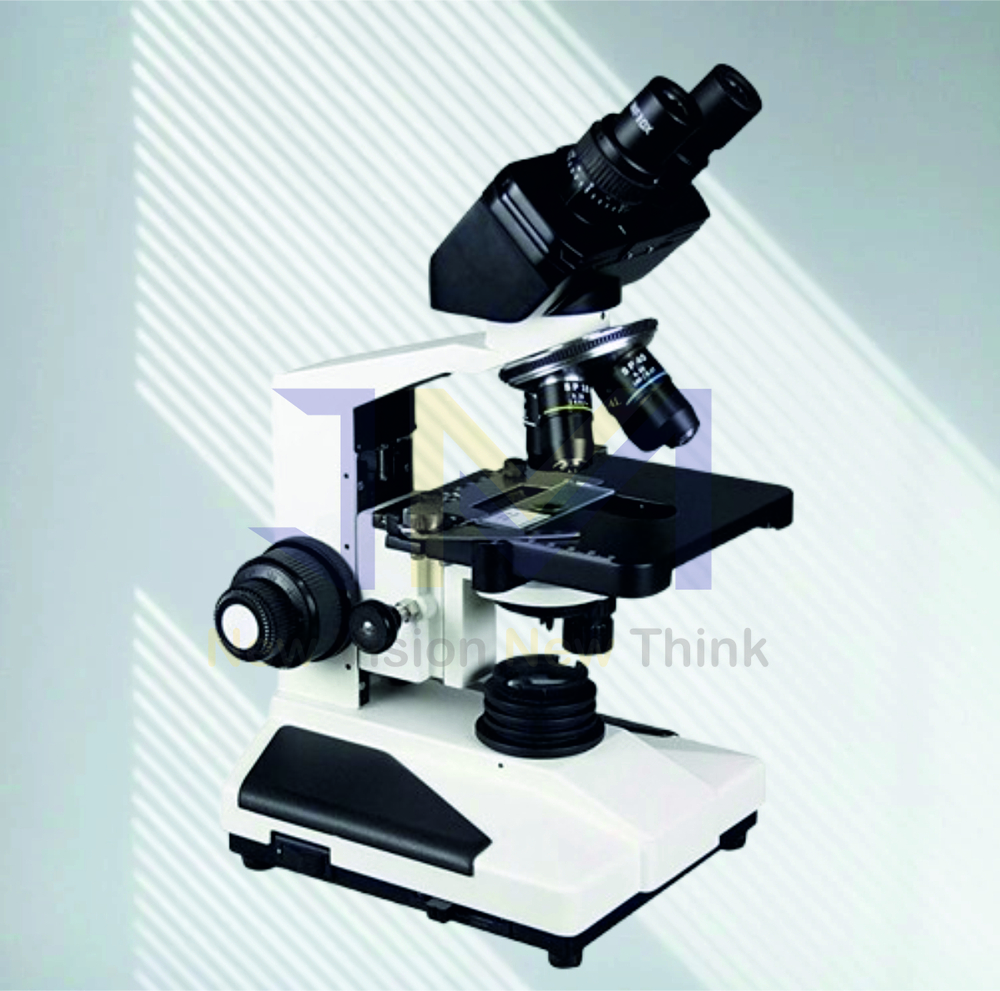

Microscope Binocular

• Coarse Adjustment Range
• Suitable for rapid focusing of thick samples.

• Condenser
• Fixed condenser lens with iris diaphragm.

• Dimensions
• Approx. 400mm x 220mm x 180mm.

• Drawtube
• Other, Monocular inclined, 45,

• Eyepiece Tube
• Inclined at 45, monocular.

• Eyepieces
• 10x Wide Field paired eyepiece.

• Features
• Sturdy metallic body, anti-fungal coated optics, user-friendly for cell culture work.

• Fine Adjustment Range
• Graduated fine focus for detailed observation.

• Focal Distance
• Long working distance, suitable for flasks and petri dishes.

• Focus Range
• Coarse and fine adjustment with long range suitable for thick vessels.

• Focus System
• Coaxial coarse & fine focusing mechanism.

• Frame Rate
• Not applicable.

• Illumination
• Incident (top) and transmitted (bottom) light, usually with LED or halogen bulb.

• Image Format
• Optical viewing only (no digital capture integrated).

• Interface
• Manual, no USB or video interface.

• Interpupillary Distance
• Not applicable (single monocular tube).

• Light Source
• 6V/20W Halogen lamp or LED illumination with intensity control.

• Magnification
• 40x to 400x standard (with optional up to 1000x).

• Objective Achromatic
• 4x, 10x, 40x standard (spring loaded), optional 100x oil immersion.

• Resolution
• Optical, depends on objective used up to 1000x.

• Sensor
• Not applicable (optical viewing only)

• Spare Parts
• Spare bulb, fuse, fuse holder, dust cover included.

• Still Image Capture Resolution
• Not applicable (does not include a camera).

• Theory

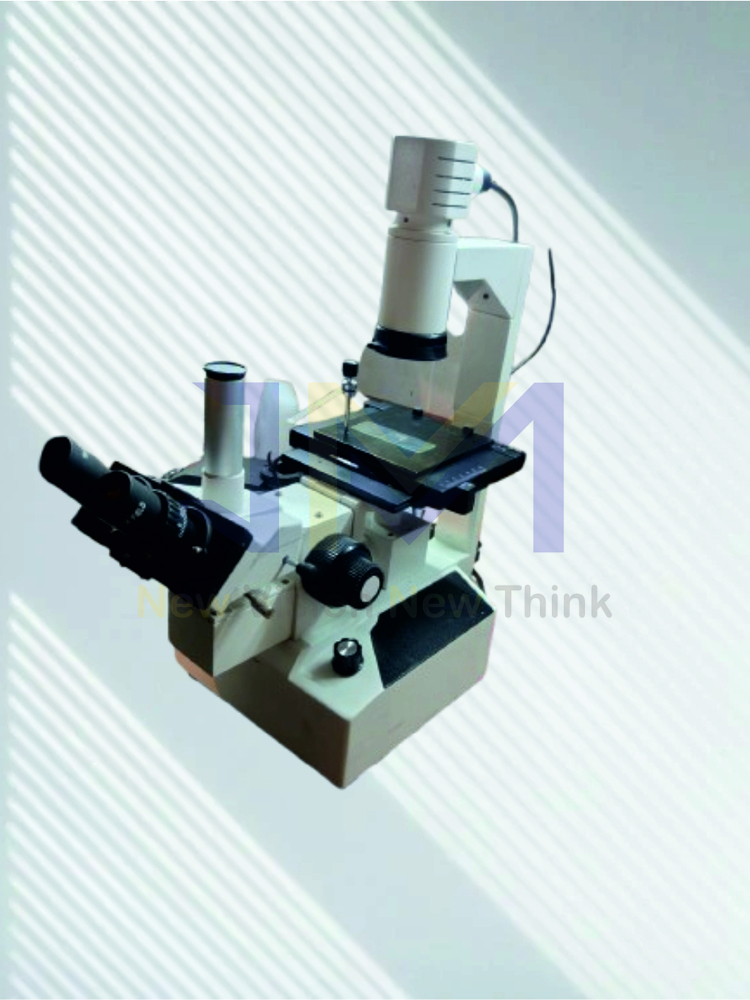

• Other, Upright microscope specifically designed for tissue culture observation in laboratories.

• Video Capture Resolution
• Not applicable.

• View Head
• Monocular, inclined.

• Working Stage
• Large rectangular mechanical stage with clips, accommodates culture flasks/plates.

• Coarse Adjustment Range
• Approx. 15mm vertical travel.

• Condenser
• NA 0.65 with iris diaphragm and swing-out filter holder.

• Dimensions
• Approx. 35cm height x 13cm base width.

• Drawtube
• Other, Monocular, inclined at 45 for comfortable viewing.

• Eyepiece Tube
• Monocular, inclined.

• Eyepieces
• Wide field 10x standard; other magnifications optional.

• Features
• Rigid metal body, easy to use, ideal for students, precise mechanical movement.

• Fine Adjustment Range
• Precision focusing for microscopy observations.

• Focal Distance
• Fine focus, 8mm coarse adjustment travel.

• Focus Range
• Coarse and fine adjustment provided.

• Focus System
• Coarse and fine focusing knobs, coaxial.

• Frame Rate
• Not applicable.

• Illumination
• Plano-concave mirror for ambient or lamp-based light.

• Image Format
• Visual observation, not digital.

• Interface
• Manual adjustments, no electronic interface.

• Interpupillary Distance
• Fixed (monocular).

• Light Source
• Plano-concave mirror; optional LED illumination.

• Magnification
• Typically 40x to 1000x (with 10x eyepiece and 4x, 10x, 40x, 100x objectives).

• Objective Achromatic
• 3 objectives (Achromatic 10x, 40x, 100x oil immersion).

• Resolution
• Dependent on eyepiece and objective combination.

• Sensor
• Not applicable (optical, not digital).

• Spare Parts
• Additional objectives, eyepieces, mirror, stage clips.

• Still Image Capture Resolution
• Not applicable.

• Theory

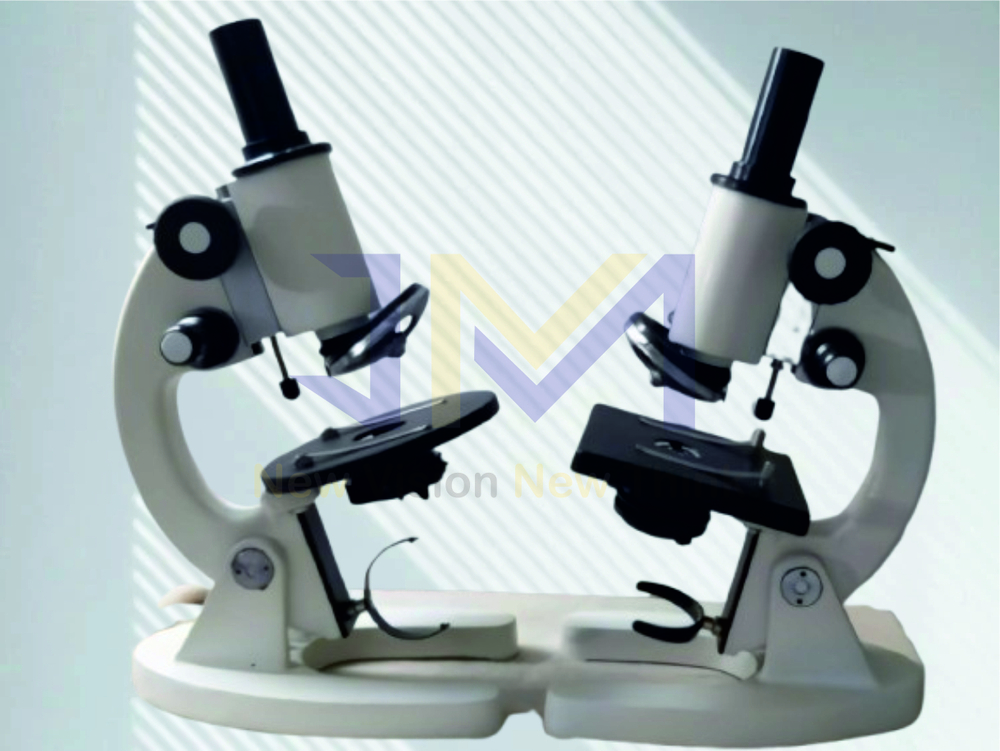

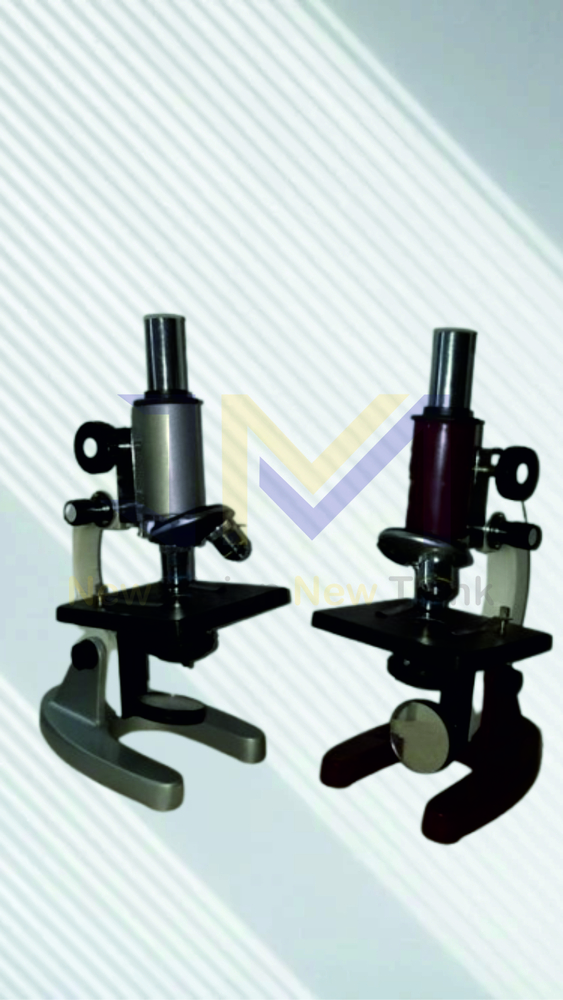

• Other, Monocular Optical system ideal for lab students and basic microscopy applications.

• Video Capture Resolution
• Not applicable.

• View Head
• Monocular head, 45 inclined, 360 rotatable.

• Working Stage
• Rectangular stage with slide clips (approximately 110x120mm).

• Coarse Adjustment Range
• Approx. 15mm

• Condenser
• Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder

• Dimensions
• Approx. 300 x 180 x 380 mm

• Drawtube
• Other, Binocular, 360 Rotatable

• Eyepiece Tube
• Inclined at 45

• Eyepieces
• Wide Field 10x/18mm Pair

• Features
• Anti-fungal optical coating, sturdy metal body, smooth mechanical movement, easy operation

• Fine Adjustment Range
• 0.002mm precision movement

• Focal Distance
• Varies per objective, typically 160mm Mechanical Tube Length

• Focus Range
• Coarse and fine focus adjustment

• Focus System
• Coaxial coarse & fine focusing system, vertical movement

• Illumination
• Built-in LED or Mirror (Adjustable)

• Interpupillary Distance
• 55mm to 75mm adjustable

• Light Source
• 6V/20W Halogen Lamp or LED, Adjustable Brightness

• Magnification
• 40x to 1000x (using different objective and eyepiece combinations)

• Objective Achromatic
• 4x, 10x, 40x (S), 100x (S, Oil Immersion)

• Spare Parts
• Spare bulbs, fuses, eyepieces, objectives available

• Theory
• Other, Binocular Optical System

• View Head
• Binocular, 360 Rotatable

• Working Stage
• Double Layer Mechanical Stage, 125x115mm with 70x30mm movement
